    how to display soft edges with rigged file in Piview

    게시판: PiStage

    I'm testing the PiStage1.2.0 version. I made a simple rigged file named “boy_setup”. This file is simply skinned with the default skeleton tool of Maya. When I previewed the “boy_setup” with Piview, I found that the geometry was hard edge display. Please see the following picture. I have found that as long as the model is rigged, hard edges will appear in Piview. I would like to ask, for rigged files, in order to display soft edges in Piview, what kind of setup work do I need to do ahead of time? Thank you very much.


    댓글 13개
    danielwu
    2018년 5월 23일

    This issue sometime appears because the vertex tangents are computed by default engine.

    It could be solved by the following steps:

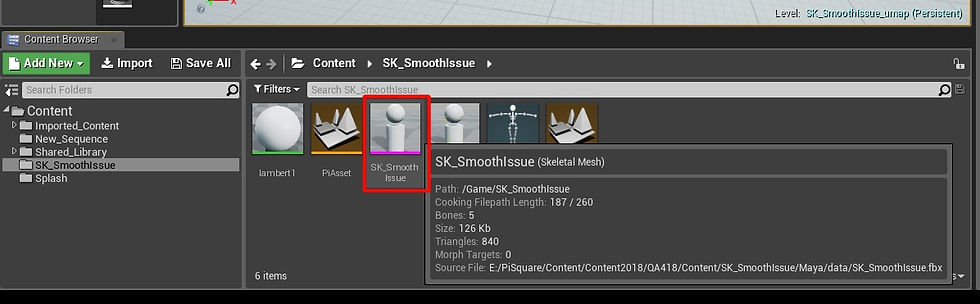

    1. Check out your rigged asset "boy_setup" from content list of PiManager.

    2. Open UE, then double click "boy_setup" to open skeletal mesh editor in UE4 content browser.

    3. Set the item Import Normals and Tangents in comboBox of Normal Import Method in Import setting panel.

    4. Click Reimport Mesh, then the mesh display should be updated as it in Maya.

    5. Save it in skeletal mesh editor.

    52698200
    2018년 5월 23일

    Thank you for your prompt reply!

    I think this mistake should be caused by what you said.

    However, I did the tests according to your steps and found that I still couldn't solve the problem. According to your operation steps, after using the "import Normals and Tangents" option in UE4, it is still hard edge display in the editor of UE4.

    So I went on to do another test of importing FBX format, as follows:

    1) first export my "boy_setup" to FBX format.

    2) import the FBX format files into UE4, and select the "import Normals and Tangents" in the import option:



    3) SoftEdge is displayed in "skeletal mesh editor".




    What on earth is this? I want to ask if there is a problem with the default setting of my own UE4.18.3?

    0
    danielwu
    2018년 5월 23일

    It would be better to sent your "boy_setup" maya file to .

    We would check it as soon as possible.

    52698200
    2018년 5월 23일

    OK, I'll send it right away. Thank you very much for your quick reply.

    0
    charlifink
    2020년 1월 20일

    By using this medium you will be able to learn that how you can show the forums. So far this is concerned is preparing everyone for giving more instructions according to the new concepts.

    0
    seo experts
    2020년 2월 09일

    The spoecular display with a BRDF is really bad. unless I subdivide a lot my mesh ... So when I exported my obj I noticed that my hard edges stay on the obj ... The file should open although we don't support everything that comes with FBX ... I think it is because the FBX is exported in smooth mesh preview. by

    0
    seo experts
    2020년 2월 09일

    2D Animation is currently shipped as a preview package, which ... In addition, there is currently no integration with Unity's new Vector Graphics package, which includes SVG file import ... All of the 2D rigging happens in the Sprite Editor. ... In the bottom right-hand corner, you will see an array of bone-editing ... by

    0
    cambridge newspaper
    2020년 2월 09일

    After study some of the web sites with your site now, and I genuinely like your technique for blogging. I bookmarked it to my bookmark site list and are checking back soon. Pls consider my internet site likewise and tell me what you believe. by

    0
    buyfollowers uk
    2020년 2월 10일

    Triangle Limit; 1.2.4.2 Error Threshold; 1.2.4.3 Load From File ... 1.2.5.2.3 Smooth (values from 0 to 10); 1.2.5.2.4 Close Holes (Slow) ... 1.2.7 Calculate weights & fee; 1.2.8 Upload button; 1.2.9 Upload a rigged object; 1.2.10 Upload a ... Use duck.dae; Enable Show Edges and verify that the Preview ...by

    0
    buyfollowers uk
    2020년 2월 10일

    Painting & Sculpting · Rigging · Animation · Physics · Render · Compositing · Game ... Example mesh rendered flat, smoothed using edge split, and using Subdivision Surface. Note how edges are rendered differently. Sample blend- by

    0
    seo experts
    2020년 2월 14일

    Someone give me a hand? Heres a MS Onedrive link to the model's FBX file. ... Modeling Menu: Mesh Display -> Soften Edge. 2. Check Export ...BY

    0
    seo experts
    2020년 2월 14일

    The spoecular display with a BRDF is really bad. unless I subdivide a lot my mesh ... So when I exported my obj I noticed that my hard edges stay on the obj ... The file should open although we don't support everything that comes with FBX ... I think it is because the FBX is exported in smooth mesh by

    0
    aashiquiurdu poetry
    2020년 12월 13일

    Use smoothing groups from the Model file only. From Angle, Use the Smoothing Angle value to determine which edges should be smooth. None ...

    0
